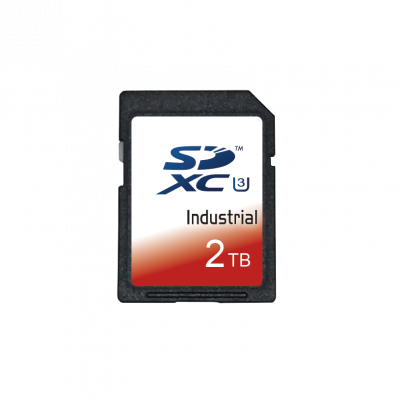

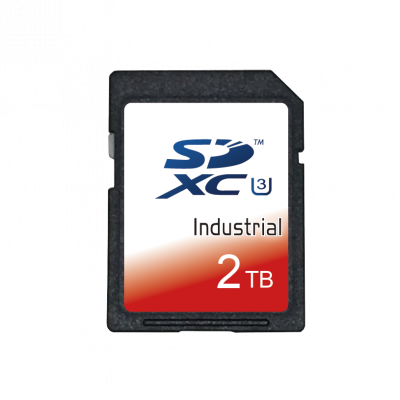

Industrial SD Card (i-SD)

Feature
● Industrial Grade SD Card
● SIP Module Solution
● Longer endurance Life time
● Stronger Data Retention
● Support Wear Leveling
● Support S.M.A.R.T. function
● Management of sudden power-fails
● Water-proof, Dust-proof
● Internal FUSE (Option)
● Support Non-CPRM SD6.10
● Support Windows/Linux/Mac/Power PC Smart SDK

Inquiries
Share
Technology
Interface SD2.0/SD3.0
Flash Type Wide-temp. SLC , MLC , 3D sTLC , 3D mTLC , 3D TLC Flash
Capacity SLC: 128MB~32GB
MLC: 8GB~256GB
3D sTLC: 8GB~128GB
3D mTLC: 64GB~256GB
3D TLC: 32GB~512GB
Max. Performance Read:90MB/s, Write:70MB/s
Operating Voltage 2.7V~3.6V
Power Consumption 0.55W
Operating Temp. -40°C ~ + 85°C (Industrial Grade)
Storage Temp. -50°C ~ + 95°C (Industrial Grade)
Humidity 0%~95%
Shock Duration: 0.5ms, 1500G,3 axes (Military Grade)
Vibration 30G Peak, 10Hz to 2K Hz, 3 axes (Military Grade)
MTBF 2,000,000 hrs
Dimensions 32mm x 24mm x 2.1mm
