Product Information

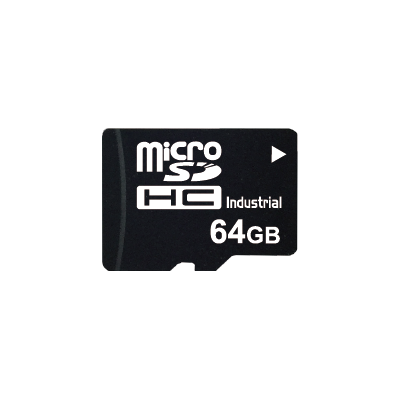

Industral TF Card (i-TF)
Feature
Inquiries
● Industrial Grade micro SD Card
● SIP Module Solution
● Longer endurance Life time
● Stronger Data Retention
● Support Wear Leveling
● Support S.M.A.R.T. function
● Support Security Function(Hidden/Write Protect/ WORM)
● Management of sudden power-fails
● Water-proof, Dust-proof
● Support Non-CPRM SD6.10
● Support Windows/Linux/Mac/Power PC Smart SDK
● SIP Module Solution
● Longer endurance Life time
● Stronger Data Retention
● Support Wear Leveling
● Support S.M.A.R.T. function
● Support Security Function(Hidden/Write Protect/ WORM)
● Management of sudden power-fails
● Water-proof, Dust-proof
● Support Non-CPRM SD6.10
● Support Windows/Linux/Mac/Power PC Smart SDK
Inquiries
Share
Technology
| Interface | SD2.0/SD3.0 |
|---|---|
| Flash Type | Wide-temp. SLC , MLC , sMLC , 3D sTLC , 3D TLC Flash |
| Capacity | SLC: 128MB~8GB MLC: 8GB~128GB sMLC: 4GB~64GB 3D TLC: 32GB~512GB 3D sTLC: 8GB~128GB |
| Max. Performance | Read:90MB/s, Write:70MB/s |
| Operating Voltage | 2.7V~3.6V |
| Power Consumption | 0.55W |
| Operating Temp. | -40°C ~ + 85°C (Industrial Grade) |
| Storage Temp. | -50°C ~ + 95°C (Industrial Grade) |
| Humidity | 5%~95% |
| Shock | Duration: 0.5ms, 1500G,3 axes (Military Grade) |
| Vibration | 30G Peak, 10Hz to 2K Hz, 3 axes (Military Grade) |
| MTBF | 2,000,000 hrs |
| Dimensions | 15mm x 11mm x 1mm |
