Product Information

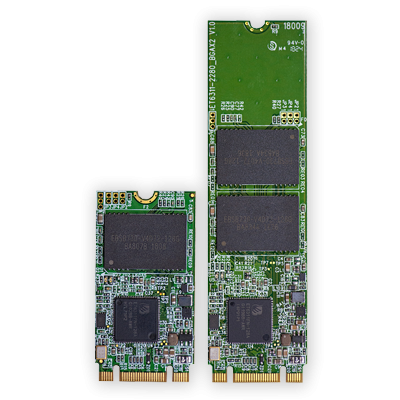

M.2 SSD (SATA III)
Feature
Inquiries
● Compliant with SATA III 6.0 Gbps
● High performance and reliability
● Operating as Boot Disk
● Support Wear-leveling
● Support TRIM command
● Read Disturbance management
● Support Bad Blocks management
● Support S.M.A.R.T. function
● High performance and reliability
● Operating as Boot Disk
● Support Wear-leveling
● Support TRIM command
● Read Disturbance management
● Support Bad Blocks management
● Support S.M.A.R.T. function
Inquiries
Share
Technology
| Interface | SATA III, M.2 |
|---|---|
| Flash Type | SLC , MLC , sMLC , 3D TLC , 3D sTLC Flash |
| Capacity | SLC: 4GB~32GB MLC: 8GB~256GB sMLC: 4GB~128GB 3D TLC: 64GB~512GB 3D sTLC: 16GB~128GB |
| Max. Performance | Read:513MB/s, Write:300MB/s |
| Operating Voltage | 3.3V±5% |
| Power Consumption | 2.2W |
| Operating Temp. | -40°C ~ + 85°C (Industrial Grade) 0°C ~ + 70°C (Standard Grade) |
| Humidity | 5%~95% |
| Shock | Duration: 0.5ms, 1500G,3 axes |
| Vibration | 20G Peak, 10Hz to 2K Hz, 3 axes |
| Dimensions | 80.0mm x 22.0mm x 3.5mm 42.0mm x 22.0mm x 3.5mm |
