Product Information

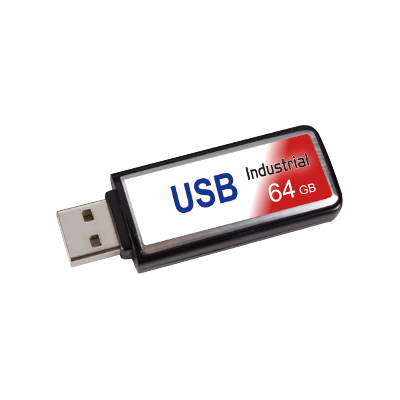

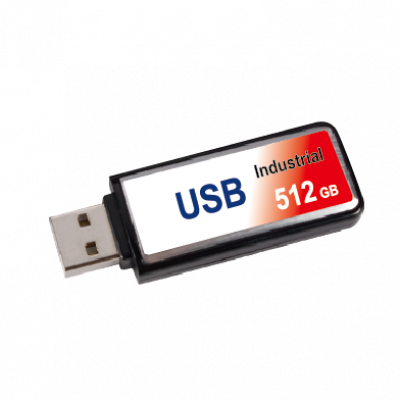

Industrial UFD (i-UFD)
Feature
Inquiries
● High speed USB2.0 interface
● High reliability based on internal ECC Function
● Supports ISP firmware upgradeable
● Advanced wear-leveling and block management
● Support S.M.A.R.T. function
● Support Security Function (Hidden/Write Protect/ WORM)
● High reliability based on internal ECC Function
● Supports ISP firmware upgradeable
● Advanced wear-leveling and block management
● Support S.M.A.R.T. function
● Support Security Function (Hidden/Write Protect/ WORM)
Inquiries
Share
Technology
| Interface | USB 2.0 |
|---|---|
| Flash Type | SLC & MLC Flash |
| Capacity | SLC: 512MB~32GB MLC: 8GB~64GB |
| Max. Performance | Read:33MB/s, Write:25MB/s |
| Operating Voltage | 4.5V ~ 5.5V |
| Power Consumption | 0.9W |
| Operating Temp. | -40°C ~ + 85°C (Industrial Grade) |
| Storage Temp. | -40°C ~ + 85°C (Industrial Grade) 0°C ~ + 70°C (Standard Grade) |
| Humidity | 0%~95% |
| Shock | Duration: 0.5ms, 1500G,3 axes |
| Vibration | 20G Peak, 10Hz to 2K Hz, 3 axes |
| Dimensions | 50.4mm x 17.0mm x 7.4mm |
